.. _bluetooth-ctlr-arch:

LE Controller
#############

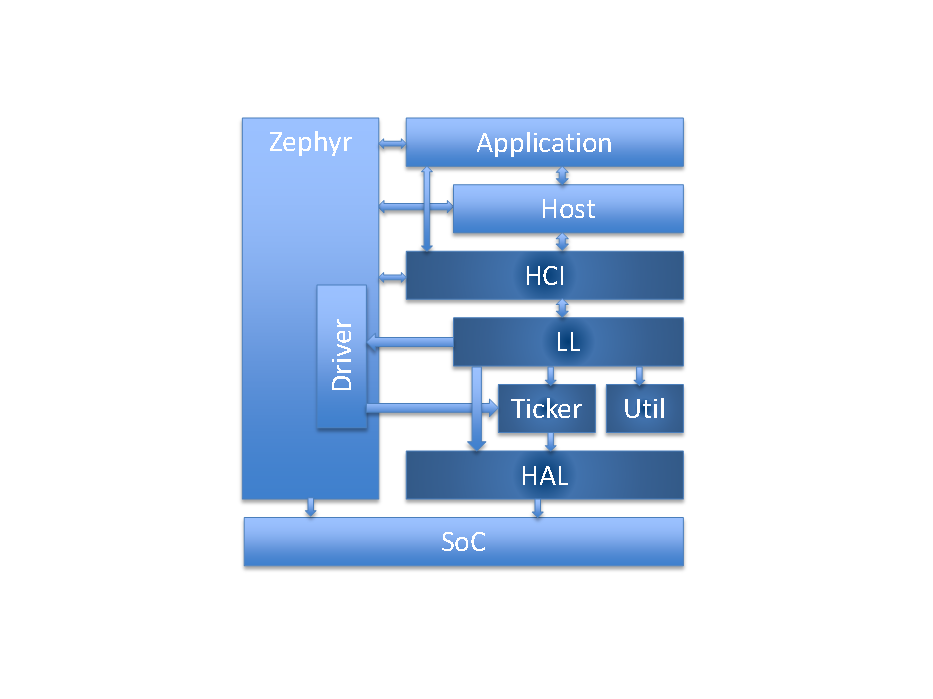

Overview
********

.. image:: ../../../../connectivity/bluetooth/img/ctlr_overview.png

#. HCI

   * Host Controller Interface, Bluetooth standard
   * Provides Zephyr Bluetooth HCI Driver

#. HAL

   * Hardware Abstraction Layer
   * Vendor Specific, and Zephyr Driver usage

#. Ticker

   * Soft real time radio/resource scheduling

#. LL_SW

   * Software-based Link Layer implementation
   * States and roles, control procedures, packet controller

#. Util

   * Bare metal memory pool management
   * Queues of variable count, lockless usage
   * FIFO of fixed count, lockless usage
   * Mayfly concept based deferred ISR executions


Architecture
************

Execution Overview
==================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_exec_overview.png


Architecture Overview
=====================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_arch_overview.png

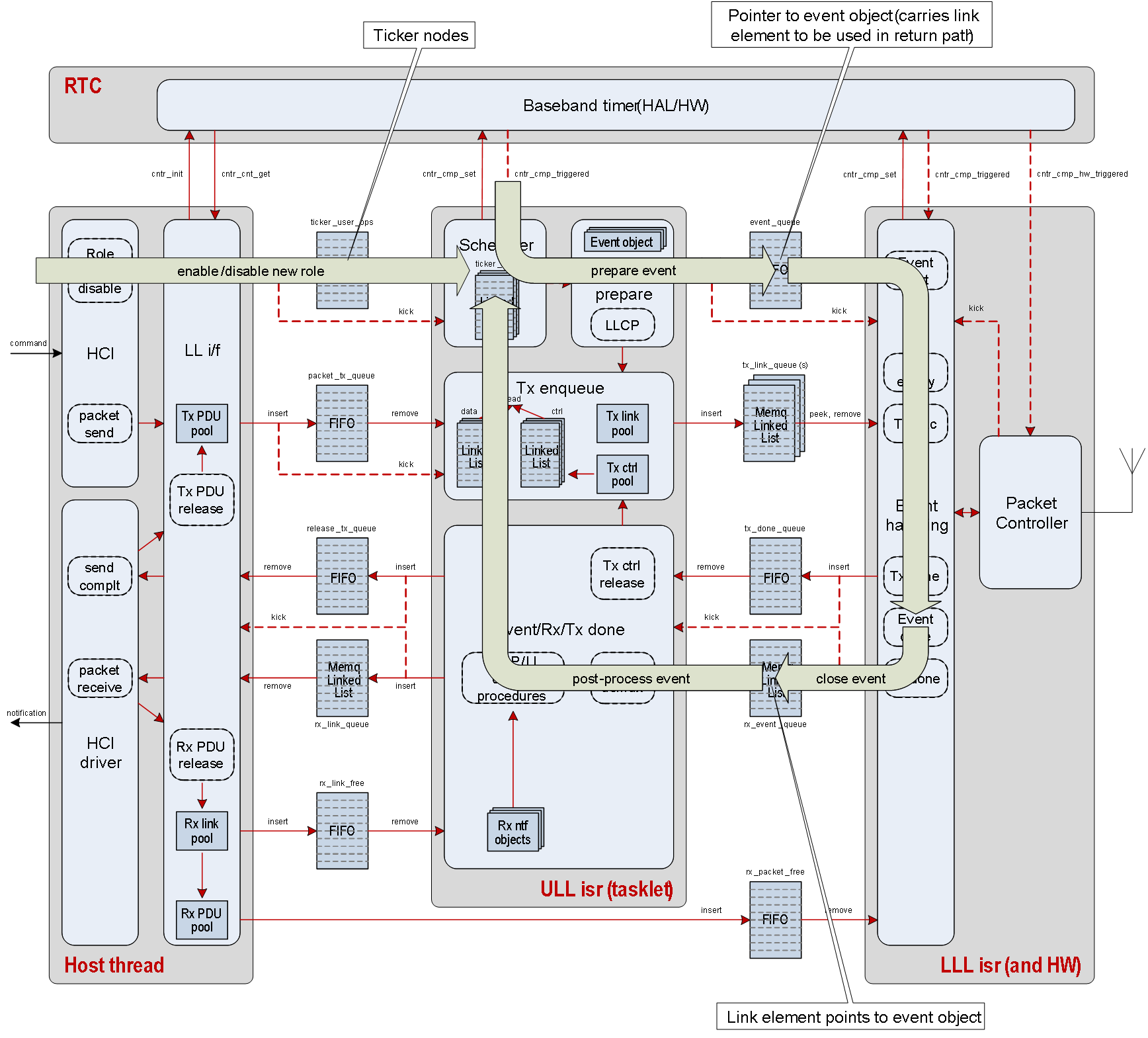

Scheduling
**********

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched.png


Ticker
======

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_ticker.png

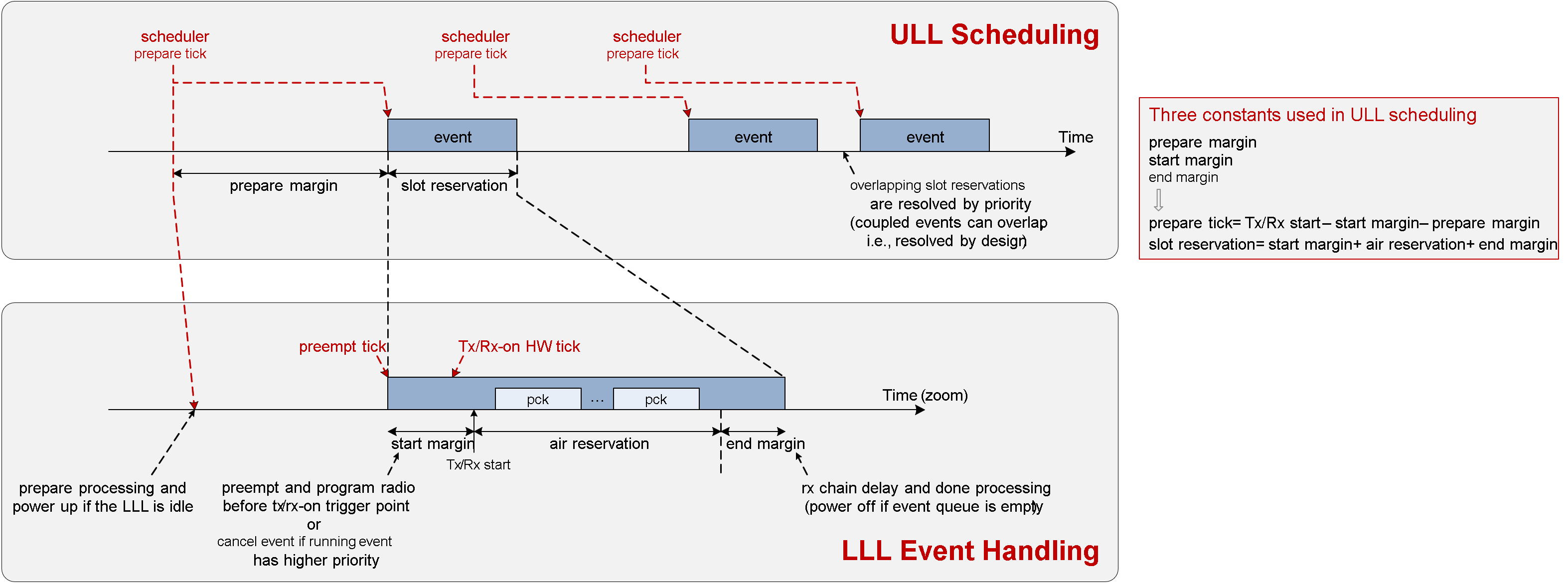

Upper Link Layer and Lower Link Layer
=====================================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_ull_lll.png


Scheduling Variants
===================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_variant.png


ULL and LLL Timing
==================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_ull_lll_timing.png


Event Handling
**************

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_event_handling.png

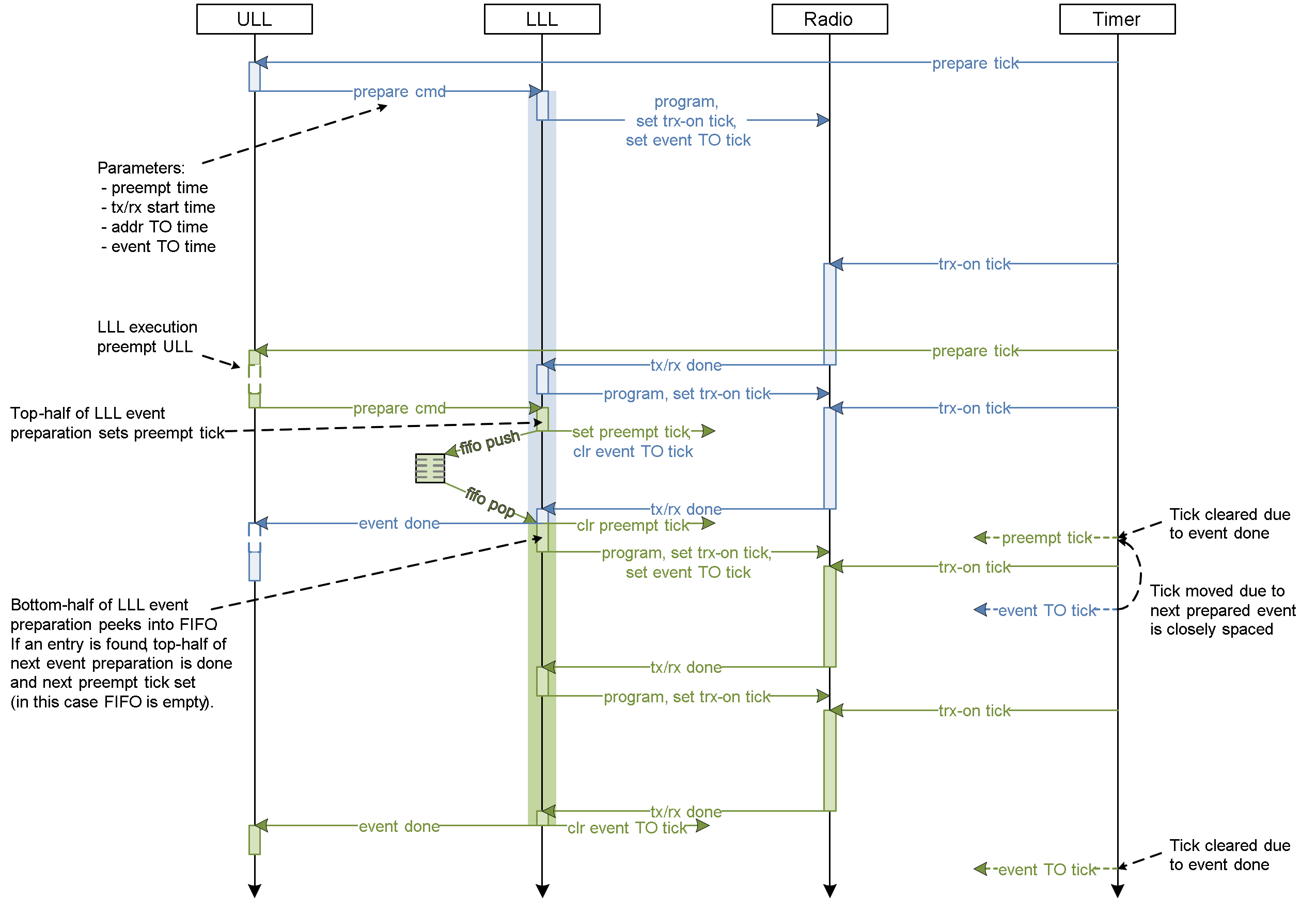

Scheduling Closely Spaced Events
================================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_msc_close_events.png

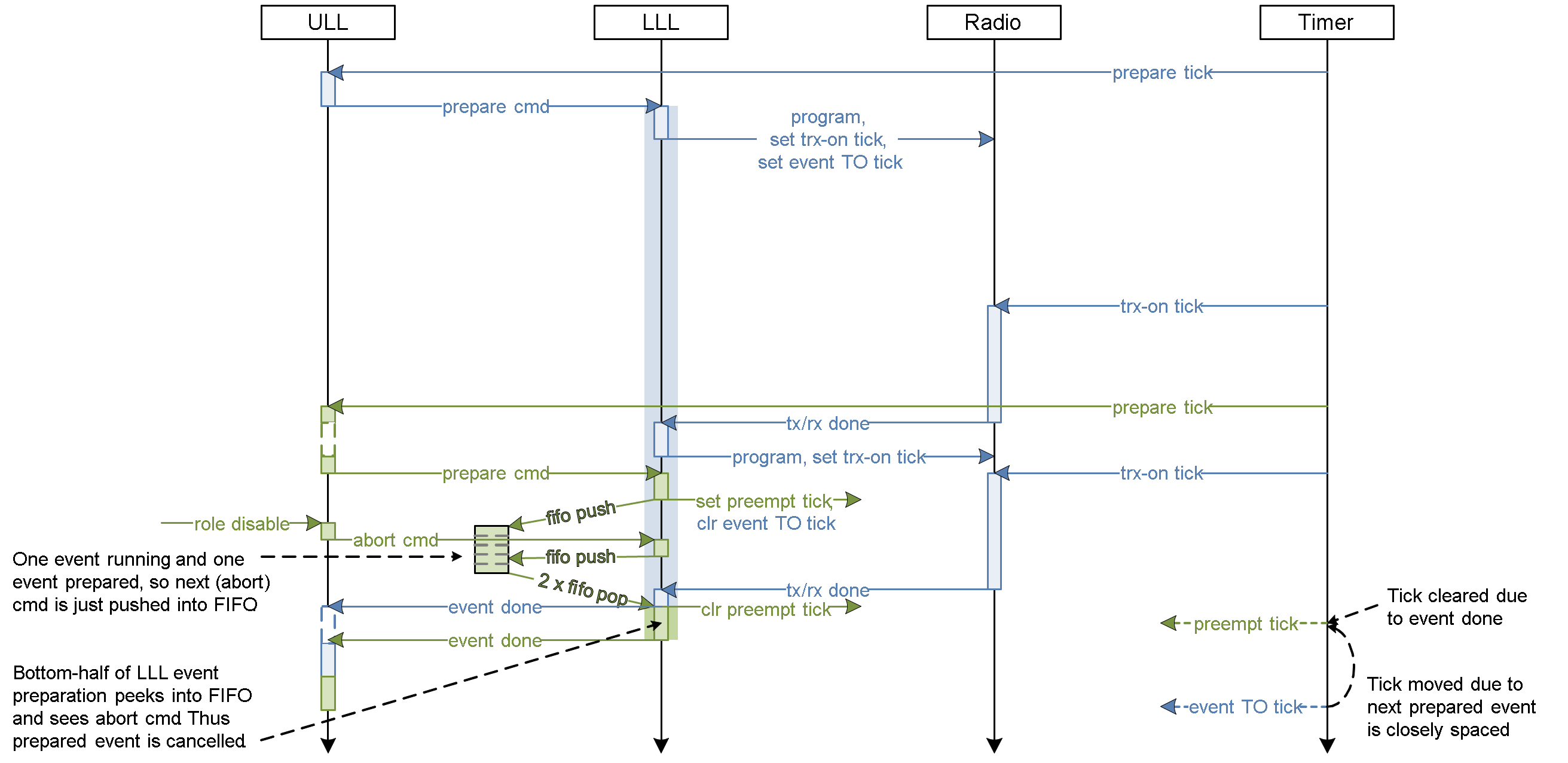

Aborting Active Event
=====================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_msc_event_abort.png

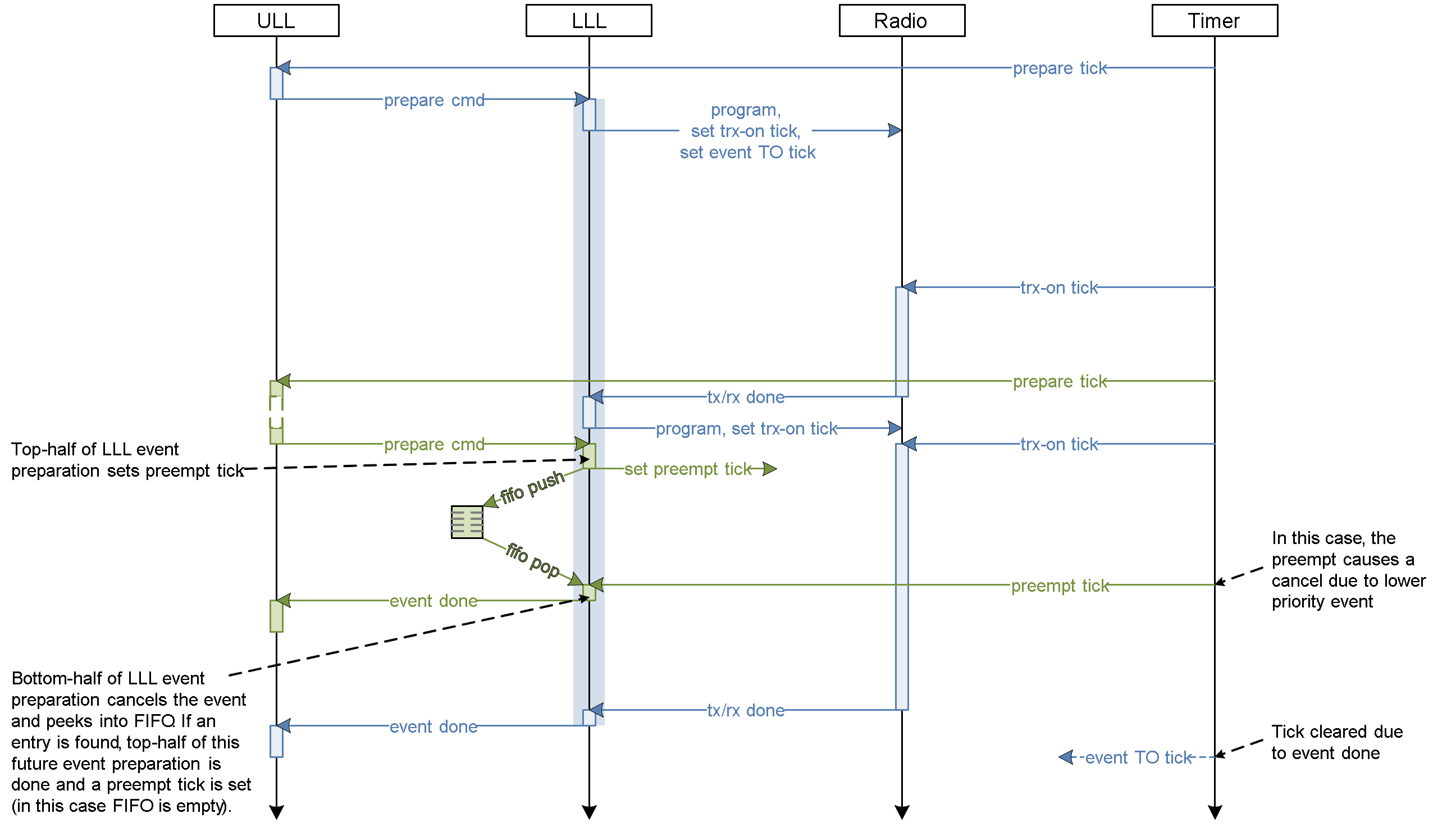

Cancelling Pending Event
========================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_msc_event_cancel.png

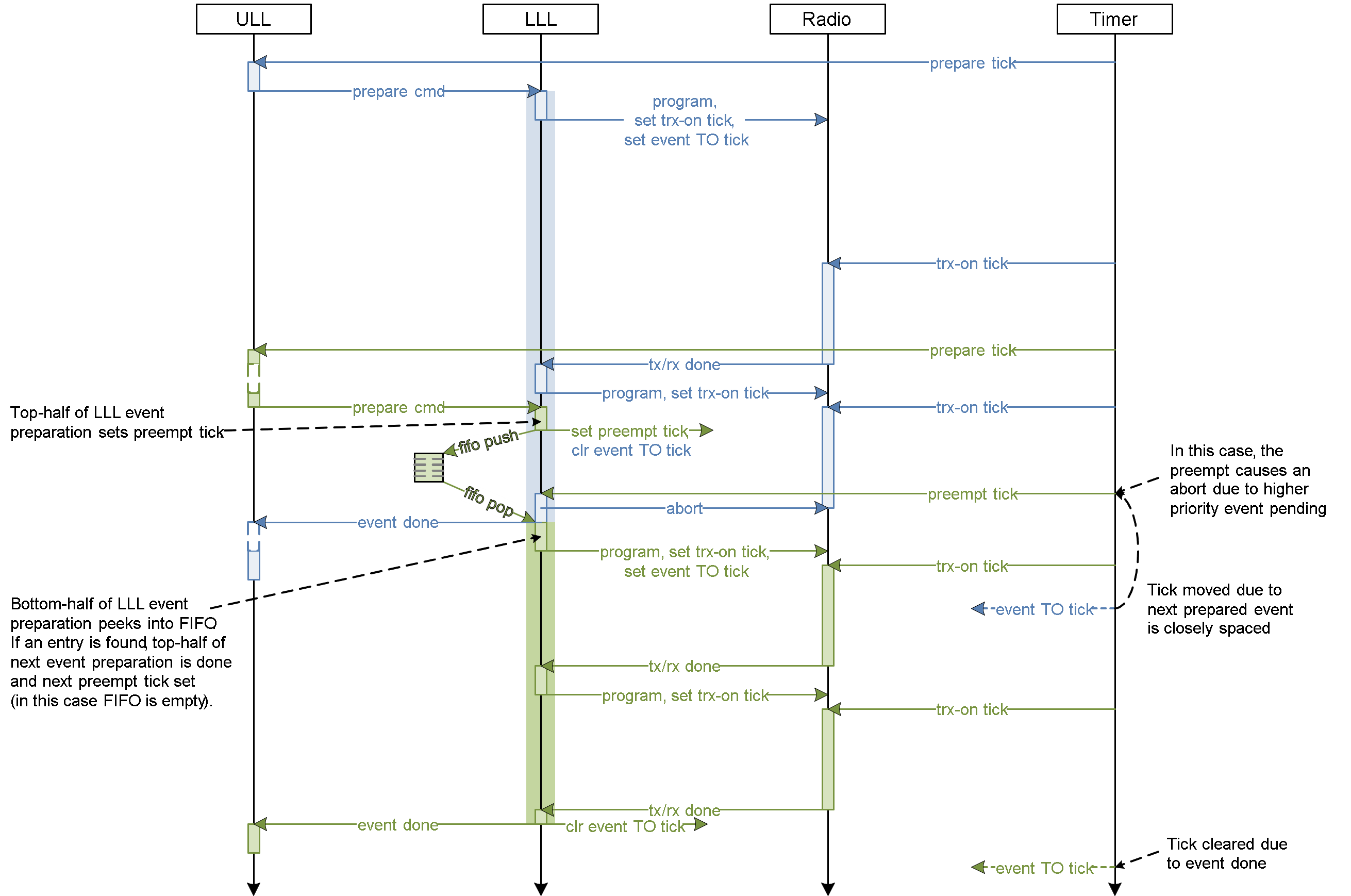

Pre-emption of Active Event
===========================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_sched_msc_event_preempt.png


Data Flow
*********

Transmit Data Flow
==================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_dataflow_tx.png

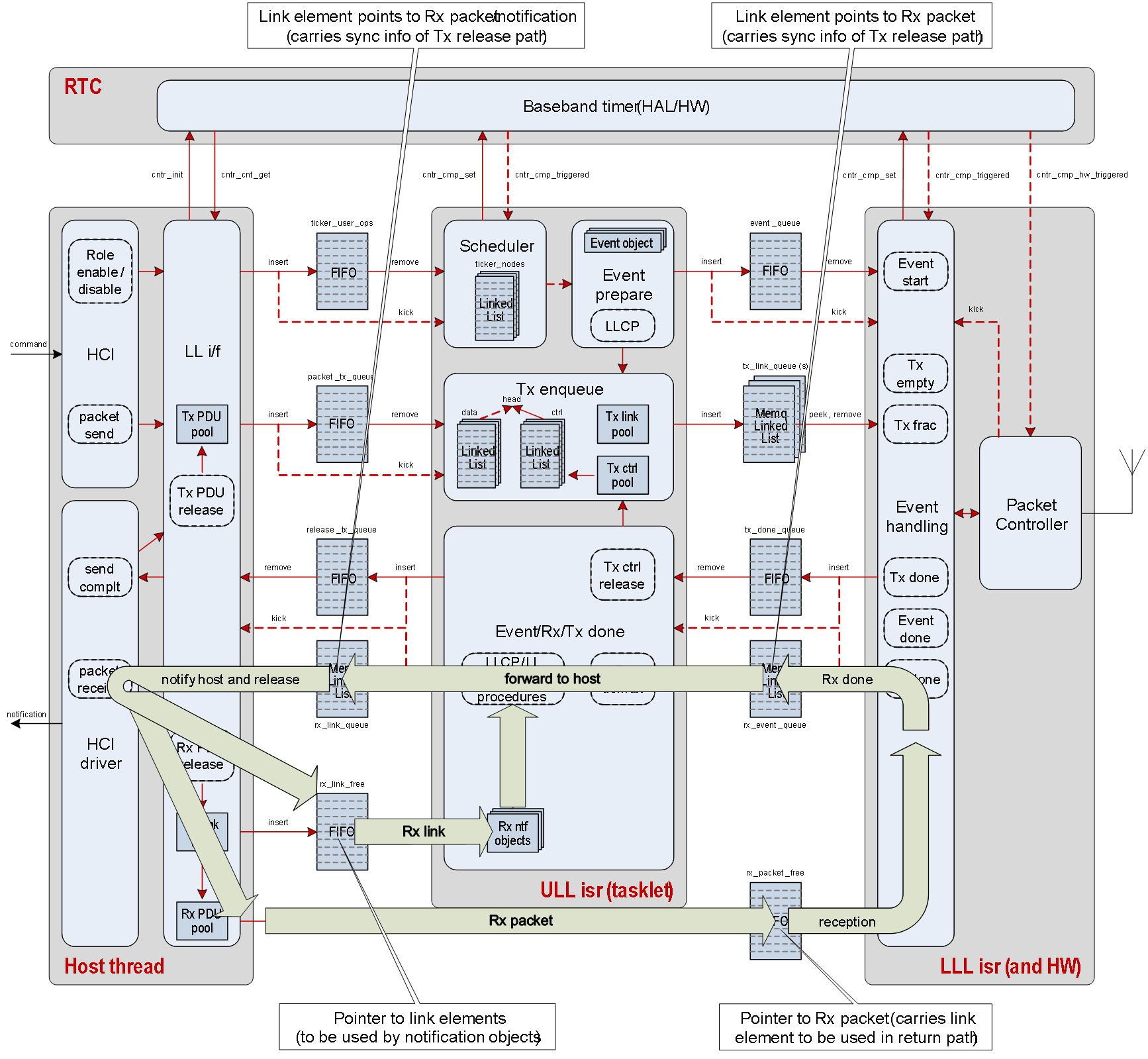

Receive Data Flow
=================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_dataflow_rx.png

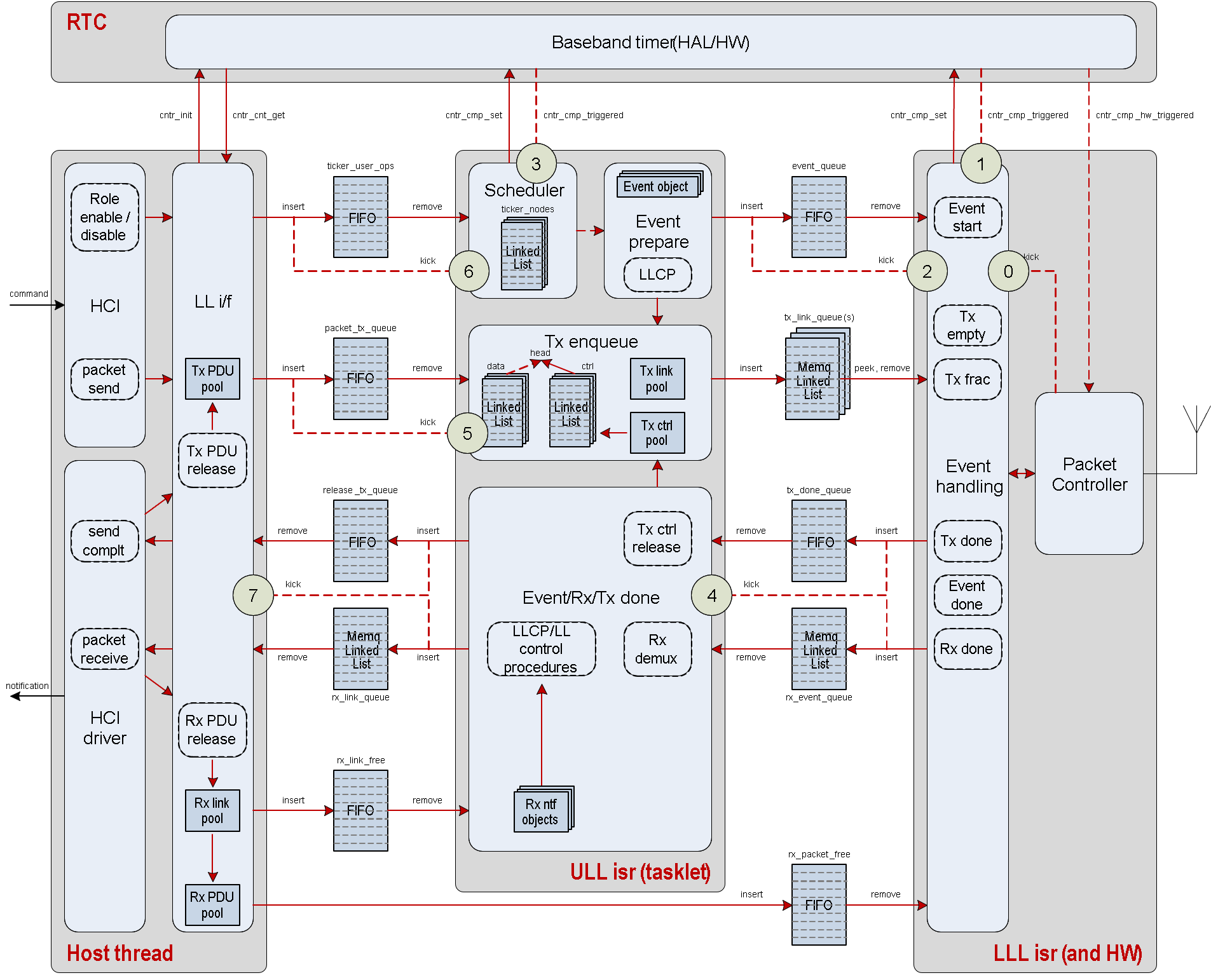

Execution Priorities
********************

.. image:: ../../../../connectivity/bluetooth/img/ctlr_exec_prio.png

- Event handle (0, 1) < Event preparation (2, 3) < Event/Rx done (4) < Tx
  request (5) < Role management (6) < Host (7).

- LLL is vendor ISR, ULL is Mayfly ISR concept, Host is kernel thread.


Lower Link Layer
****************

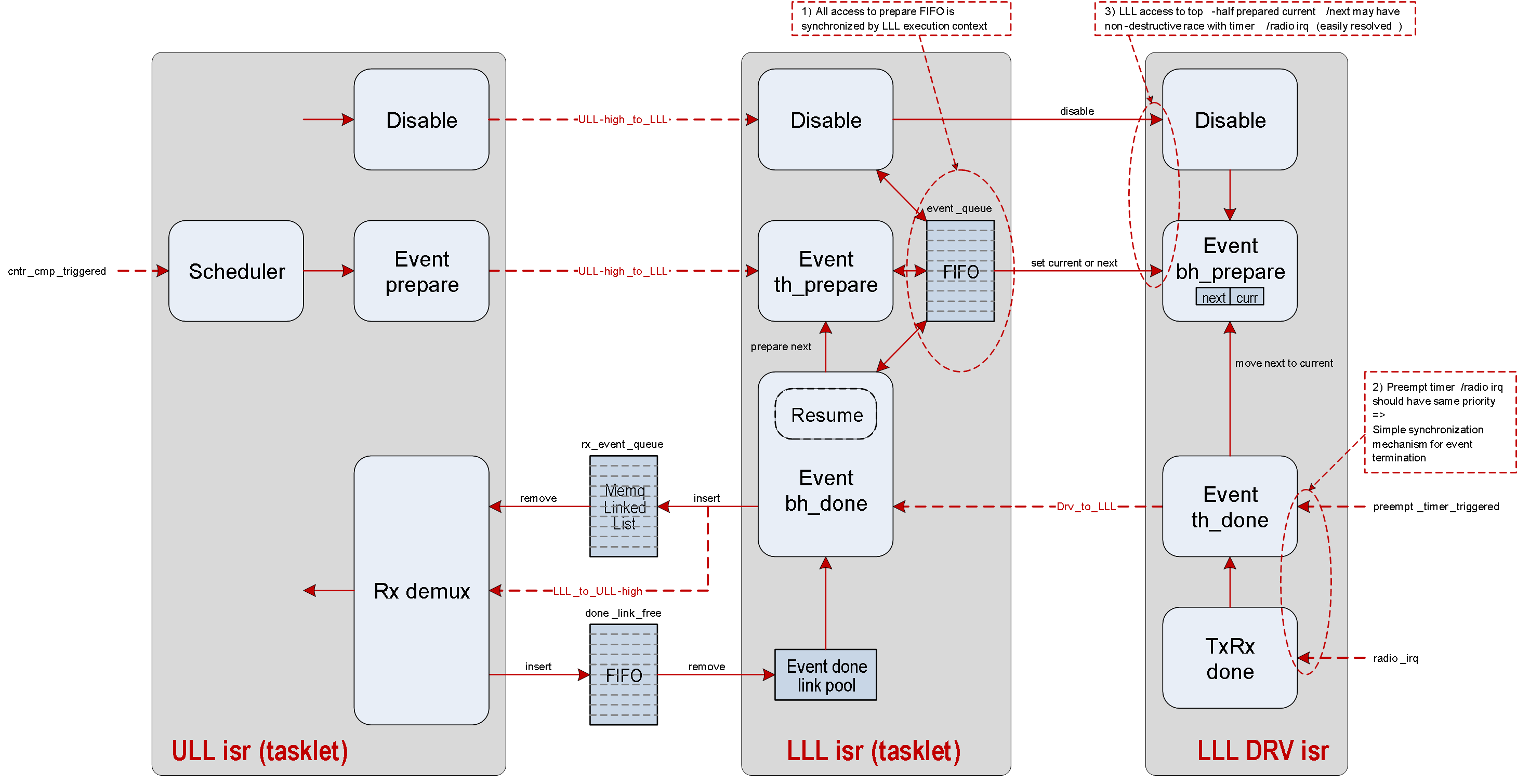

LLL Execution
=============

.. image:: ../../../../connectivity/bluetooth/img/ctlr_exec_lll.png

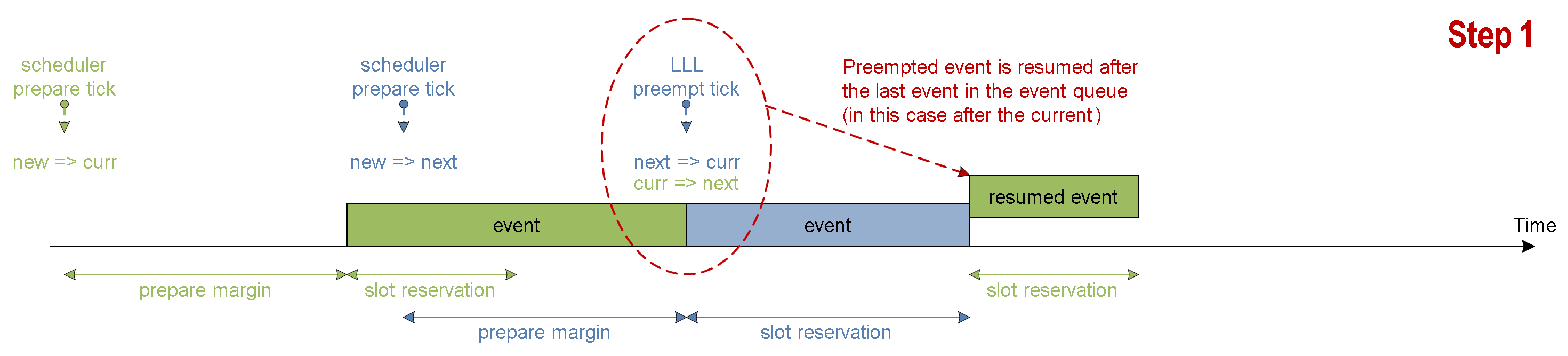

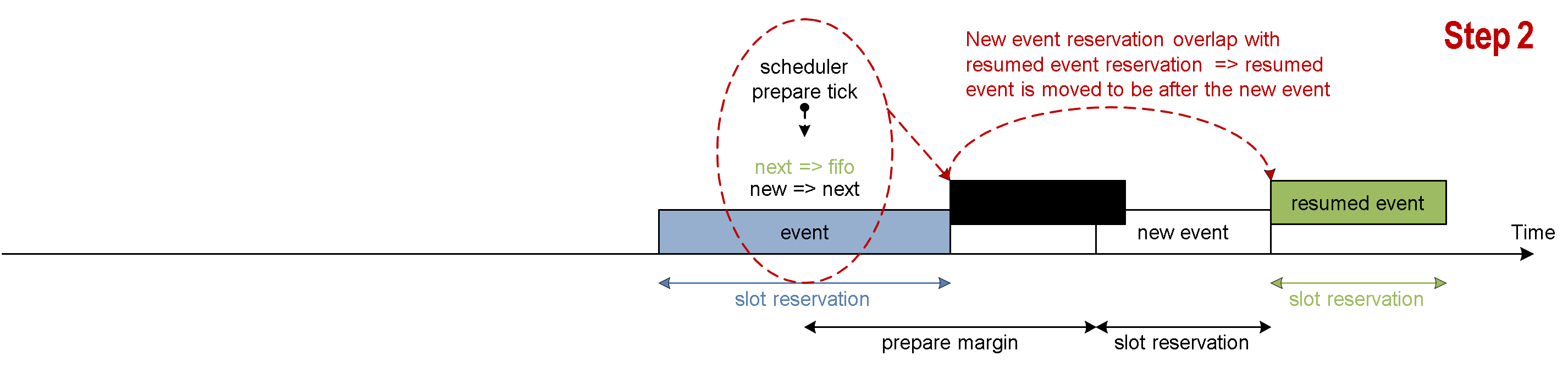

LLL Resume
----------

.. image:: ../../../../connectivity/bluetooth/img/ctlr_exec_lll_resume_top.png

.. image:: ../../../../connectivity/bluetooth/img/ctlr_exec_lll_resume_bottom.png


Bare metal utilities
********************

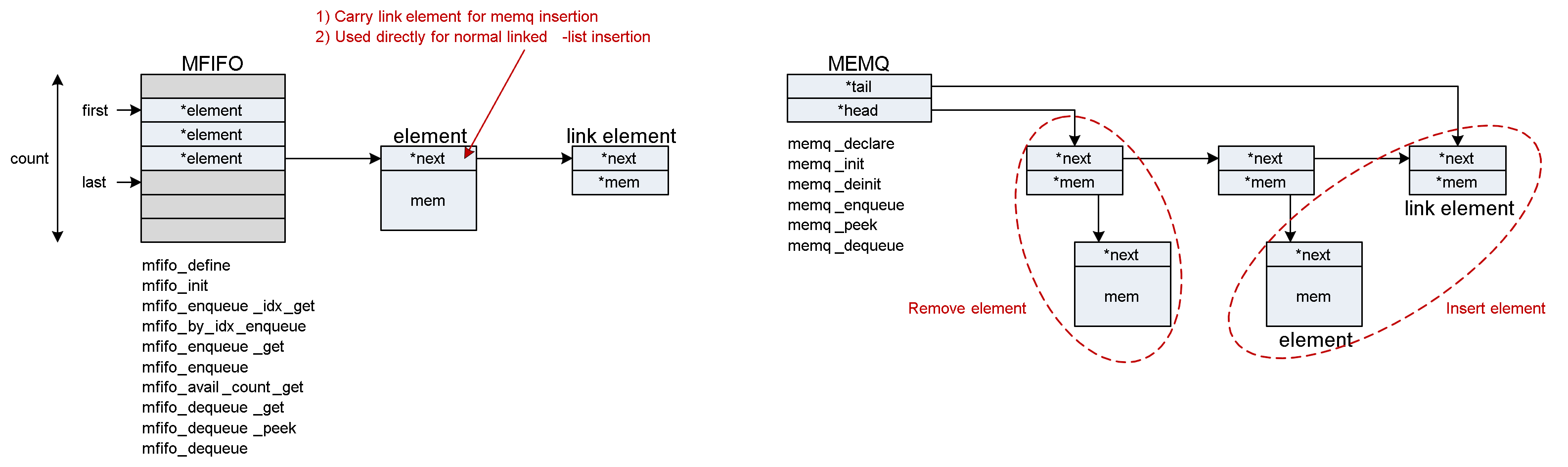

Memory FIFO and Memory Queue
============================

.. image:: ../../../../connectivity/bluetooth/img/ctlr_mfifo_memq.png

Mayfly
======

.. image:: ../../../../connectivity/bluetooth/img/ctlr_mayfly.png


* Mayfly are multi-instance scalable ISR execution contexts
* What a Work is to a Thread, Mayfly is to an ISR
* List of functions executing in ISRs
* Execution priorities map to IRQ priorities
* Facilitate cross execution context scheduling
* Race-to-idle execution
* Lock-less, bare metal

Legacy Controller
*****************

.. image:: ../../../../connectivity/bluetooth/img/ctlr_legacy.png

Bluetooth Low Energy Controller - Vendor Specific Details
*********************************************************

Hardware Requirements
=====================

Nordic Semiconductor
--------------------

The Nordic Semiconductor Bluetooth Low Energy Controller implementation
requires the following hardware peripherals.

.. list-table:: SoC Peripheral Use
   :header-rows: 1
   :widths: 15 15 15 10 50

   * - Resource
     - nRF Peripheral
     - # instances
     - Zephyr Driver Accessible
     - Description
   * - Clock
     - NRF_CLOCK
     - 1
     - Yes
     - * A Low Frequency Clock (LFCLOCK) or sleep clock, for low power
         consumption between Bluetooth radio events
       * A High Frequency Clock (HFCLOCK) or active clock, for high precision
         packet timing and software based transceiver state switching with
         inter-frame space (tIFS) timing inside Bluetooth radio events
   * - RTC [a]_
     - NRF_RTC0
     - 1
     - **No**
     - * Uses 2 capture/compare registers
   * - Timer
     - NRF_TIMER0 or NRF_TIMER4 [1]_, and NRF_TIMER1 [0]_
     - 2 or 1 [1]_
     - **No**
     - * 2 instances, one each for packet timing and tIFS software switching,
         respectively
       * 7 capture/compare registers (3 mandatory, 1 optional for ISR profiling,
         4 for single timer tIFS switching) on first instance
       * 4 capture/compare registers for second instance, if single tIFS timer
         is not used.
   * - PPI [b]_
     - NRF_PPI
     - 21 channels (20 [2]_), and 2 channel groups [3]_
     - Yes [4]_
     - * Used for radio mode switching to achieve tIFS timings, for PA/LNA
         control
   * - DPPI [c]_
     - NRF_DPPI
     -  20 channels, and 2 channel groups [3]_
     - Yes [4]_
     - * Used for radio mode switching to achieve tIFS timings, for PA/LNA
         control
   * - SWI [d]_
     - NRF_SWI4 and NRF_SWI5, or NRF_SWI2 and NRF_SWI3 [5]_
     - 2
     - **No**
     - * 2 instances, for Lower Link Layer and Upper Link Layer Low priority
         execution context
   * - Radio
     - NRF_RADIO
     - 1
     - **No**
     - * 2.4 GHz radio transceiver with multiple radio standards such as 1 Mbps,
         2 Mbps and Coded PHY S2/S8 Long Range Bluetooth Low Energy technology
   * - RNG [e]_
     - NRF_RNG
     - 1
     - Yes
     -
   * - ECB [f]_
     - NRF_ECB
     - 1
     - **No**
     -
   * - CBC-CCM [g]_
     - NRF_CCM
     - 1
     - **No**
     -
   * - AAR [h]_
     - NRF_AAR
     - 1
     - **No**
     -
   * - GPIO [i]_
     - NRF_GPIO
     - 2 GPIO pins for PA and LNA, 1 each
     - Yes
     - * Additionally, 10 Debug GPIO pins (optional)
   * - GPIOTE [j]_
     - NRF_GPIOTE
     - 1
     - Yes
     - * Used for PA/LNA
   * - TEMP [k]_
     - NRF_TEMP
     - 1
     - Yes
     - * For RC sourced LFCLOCK calibration
   * - UART [l]_
     - NRF_UART0
     - 1
     - Yes
     - * For HCI interface in Controller only builds
   * - IPC [m]_
     - NRF_IPC [5]_
     - 1
     - Yes
     - * For HCI interface in Controller only builds


.. [a] Real Time Counter (RTC)
.. [b] Programmable Peripheral Interconnect (PPI)
.. [c] Distributed Programmable Peripheral Interconnect (DPPI)
.. [d] Software Interrupt (SWI)
.. [e] Random Number Generator (RNG)
.. [f] AES Electronic Codebook Mode Encryption (ECB)
.. [g] Cipher Block Chaining (CBC) - Message Authentication Code with Counter
       Mode encryption (CCM)
.. [h] Accelerated Address Resolver (AAR)
.. [i] General Purpose Input Output (GPIO)
.. [j] GPIO tasks and events (GPIOTE)
.. [k] Temperature sensor (TEMP)
.. [l] Universal Asynchronous Receiver Transmitter (UART)
.. [m] Interprocess Communication peripheral (IPC)


.. [0] :kconfig:option:`CONFIG_BT_CTLR_TIFS_HW` ``=n``
.. [1] :kconfig:option:`CONFIG_BT_CTLR_SW_SWITCH_SINGLE_TIMER` ``=y``
.. [2] When not using pre-defined PPI channels
.. [3] For software-based tIFS switching
.. [4] Drivers that use nRFx interfaces
.. [5] For nRF53x Series

Part 3

한국어 전문 번역

LE Controller 개요

Zephyr LE Controller component overview — HCI, HAL, Ticker, software Link Layer와 utility의 Controller 구성.

HCI: Bluetooth 표준 Host Controller Interface이며 Zephyr Bluetooth HCI Driver를 제공합니다.
HAL: Vendor-specific Hardware Abstraction Layer이며 Zephyr Driver를 사용합니다.
Ticker: Soft real-time radio/resource scheduling을 담당합니다.
LL_SW: State·role, control procedure와 packet controller를 구현한 software Link Layer입니다.
Util: Bare-metal memory pool, 가변 개수 lockless queue, 고정 개수 lockless FIFO와 Mayfly 기반 deferred ISR 실행을 제공합니다.

Architecture

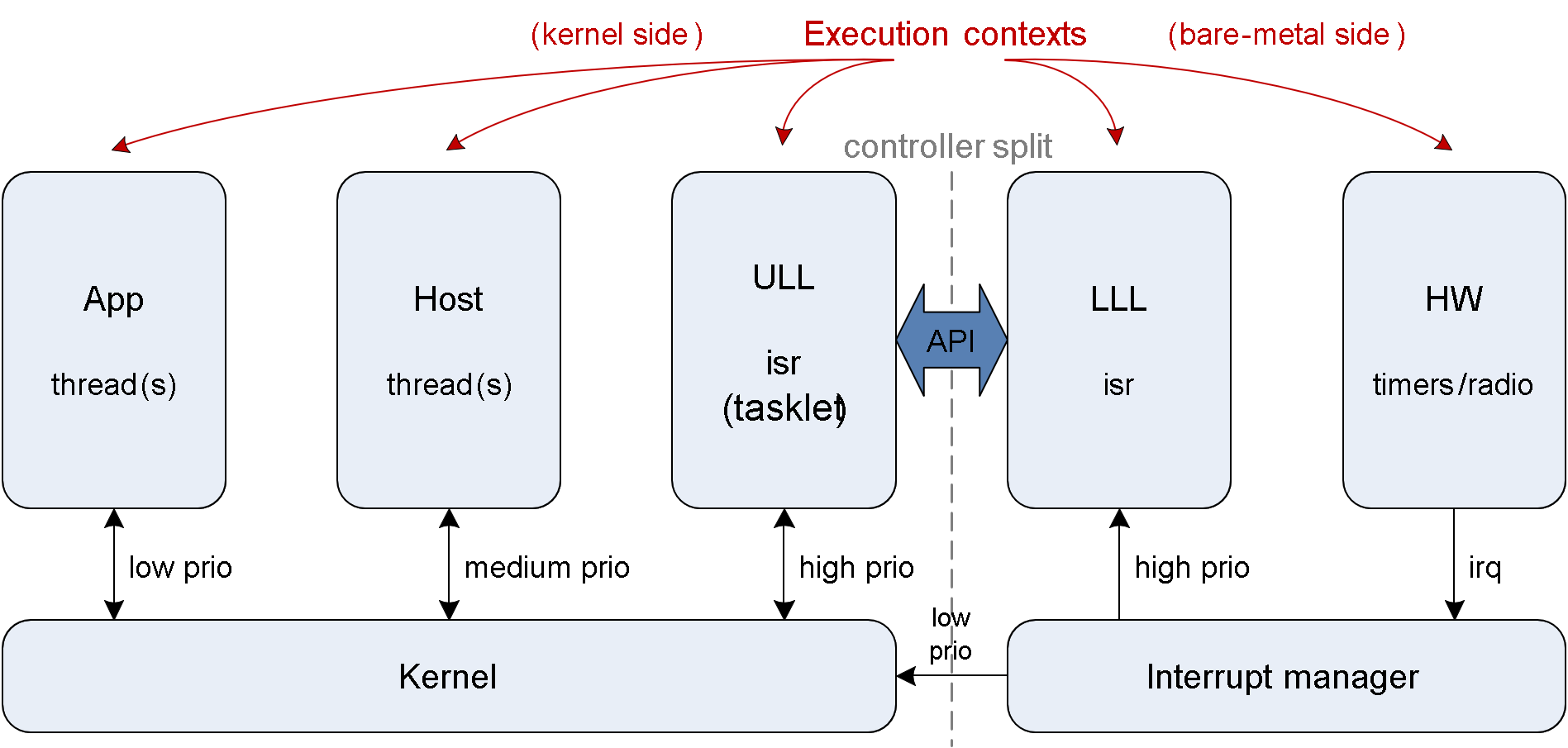

Execution overview

Architecture overview

Scheduling

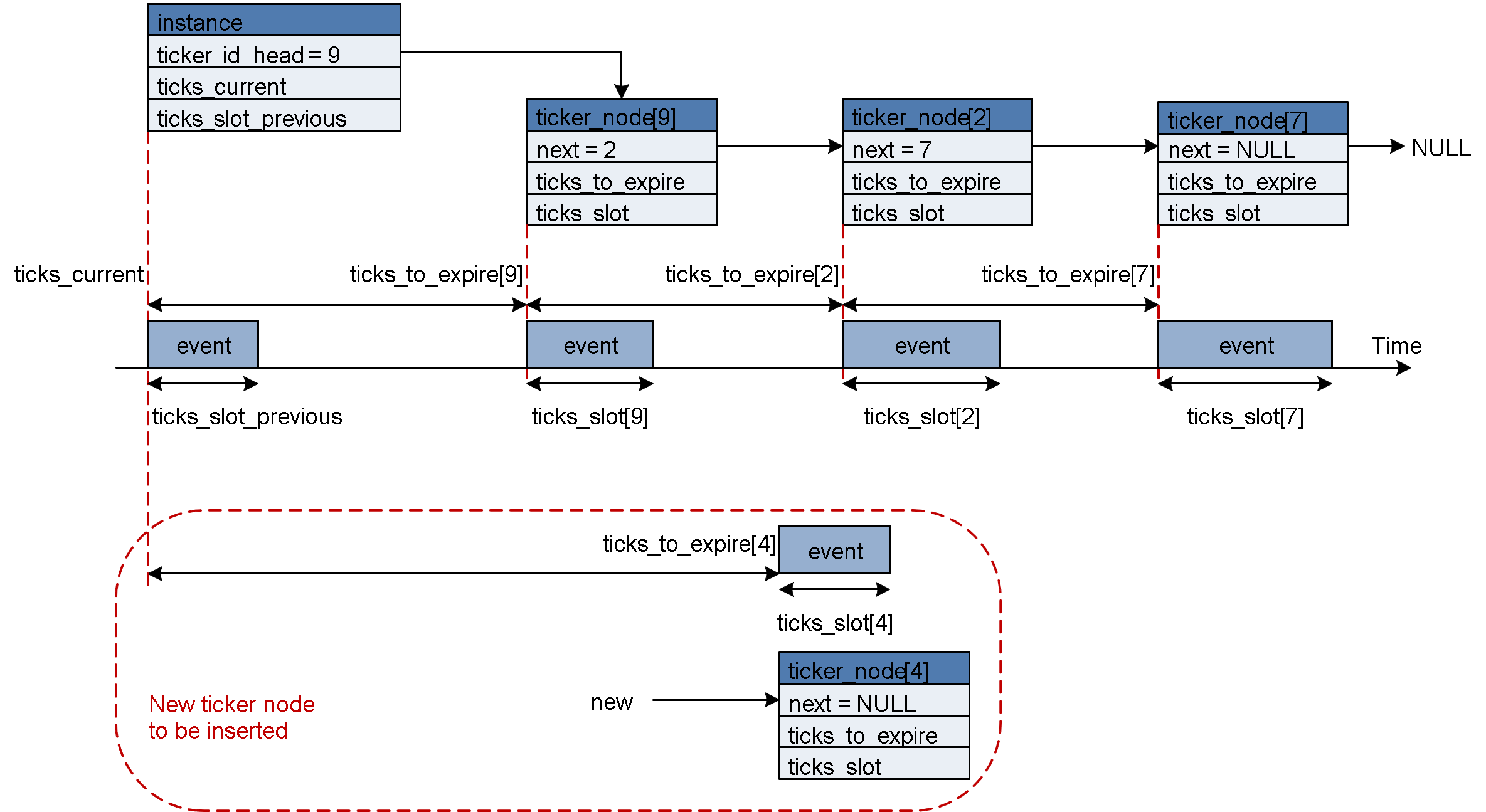

Ticker

Upper Link Layer와 Lower Link Layer

ULL and LLL scheduling — ULL 준비와 LLL radio event 실행의 분리.

Scheduling variant

ULL과 LLL timing

ULL and LLL timing — Event preparation과 radio timing 관계.

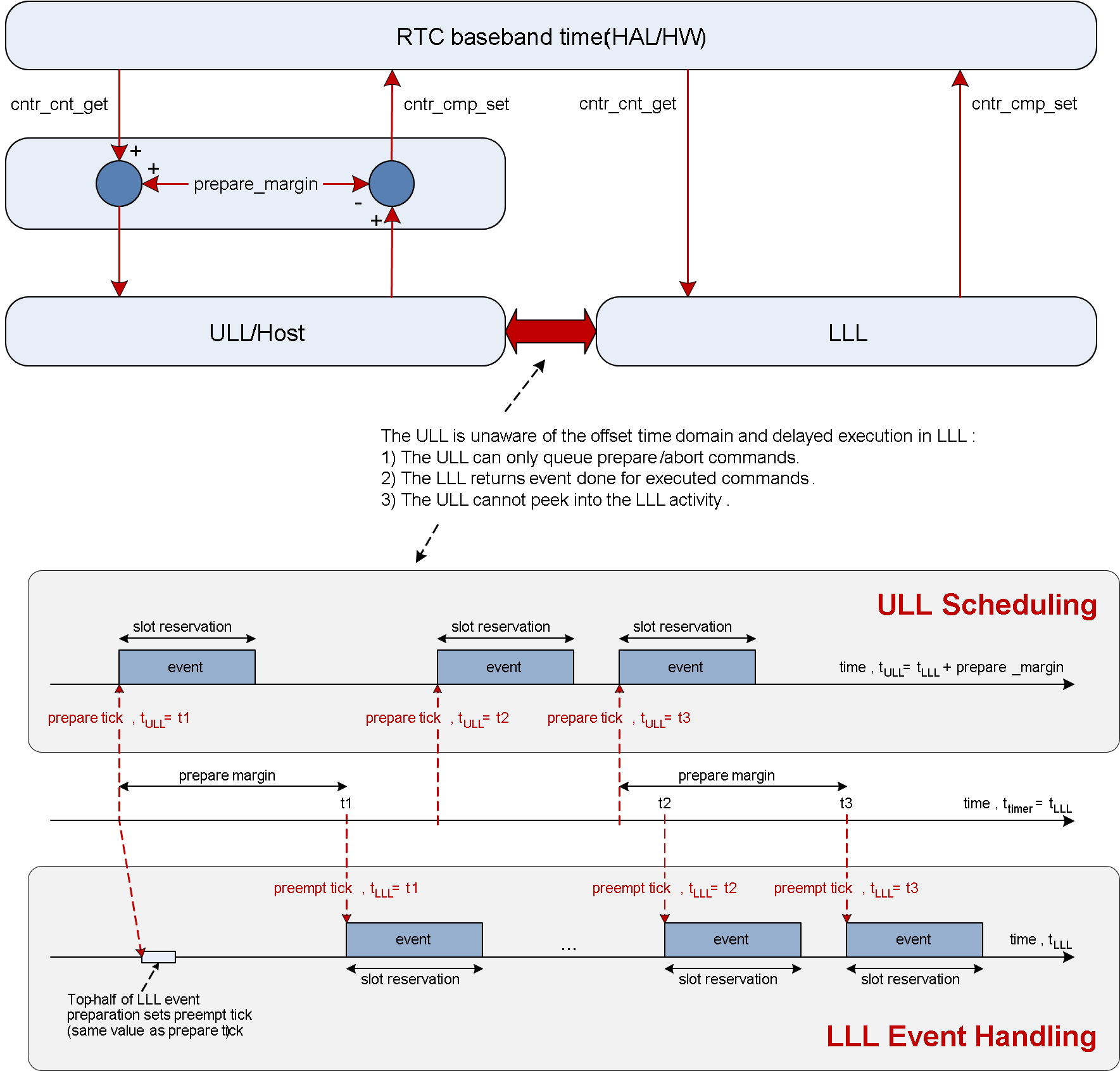

Event handling

가까이 붙은 event scheduling

Closely spaced controller events — 시간 간격이 짧은 radio event 처리.

Active event abort

Abort an active controller event — 실행 중 event abort sequence.

Pending event cancel

Cancel a pending controller event — 대기 event cancel sequence.

Active event pre-emption

Preempt an active controller event — 더 높은 우선순위 event가 active event를 pre-empt하는 sequence.

Data flow

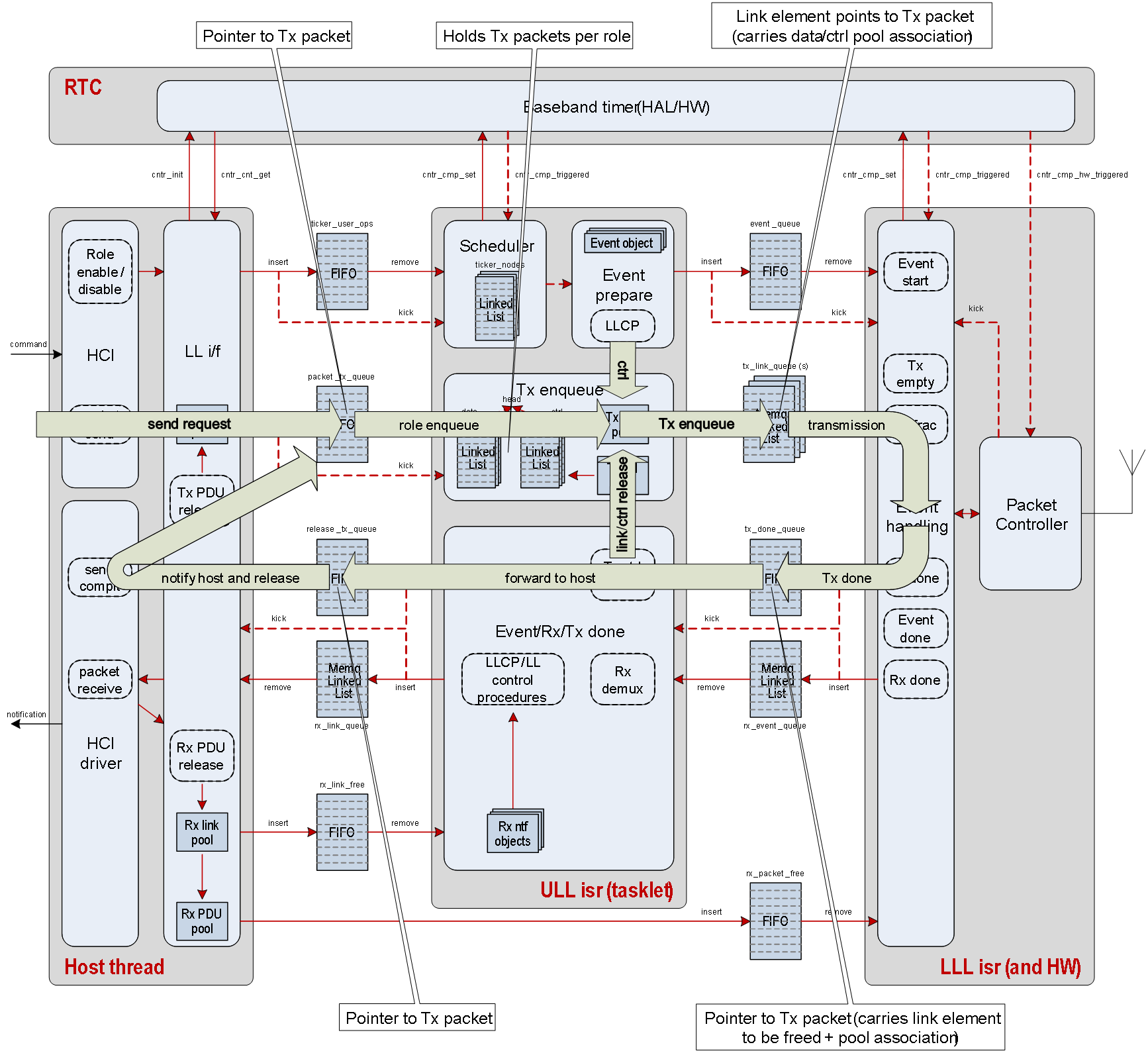

Transmit data flow

Receive data flow

Execution priority

Controller execution priorities — LLL ISR, ULL Mayfly와 Host thread priority.

Event handle(0, 1) < event preparation(2, 3) < event/Rx done(4) < Tx request(5) < role management(6) < Host(7).
LLL은 vendor ISR, ULL은 Mayfly ISR concept, Host는 kernel thread입니다.

Lower Link Layer

LLL execution

LLL resume

Bare-metal utility

Memory FIFO와 Memory Queue

Controller memory FIFO and queue — Lockless fixed-count FIFO와 variable-count memory queue.

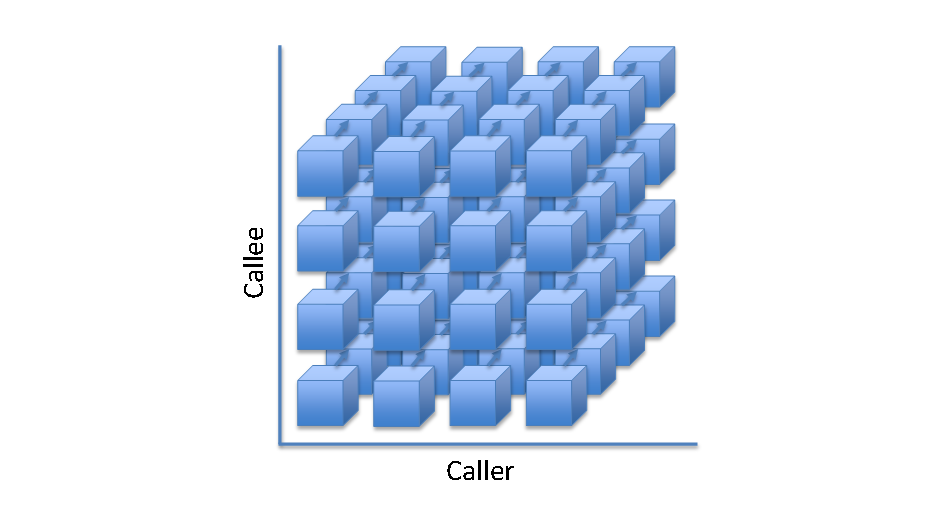

Mayfly

Multi-instance로 확장 가능한 ISR execution context
Thread에서 Work가 맡는 역할을 ISR에서는 Mayfly가 담당
ISR에서 실행할 function 목록
Execution priority를 IRQ priority에 mapping
서로 다른 execution context 사이 scheduling 지원
Race-to-idle execution
Lockless bare-metal 구현

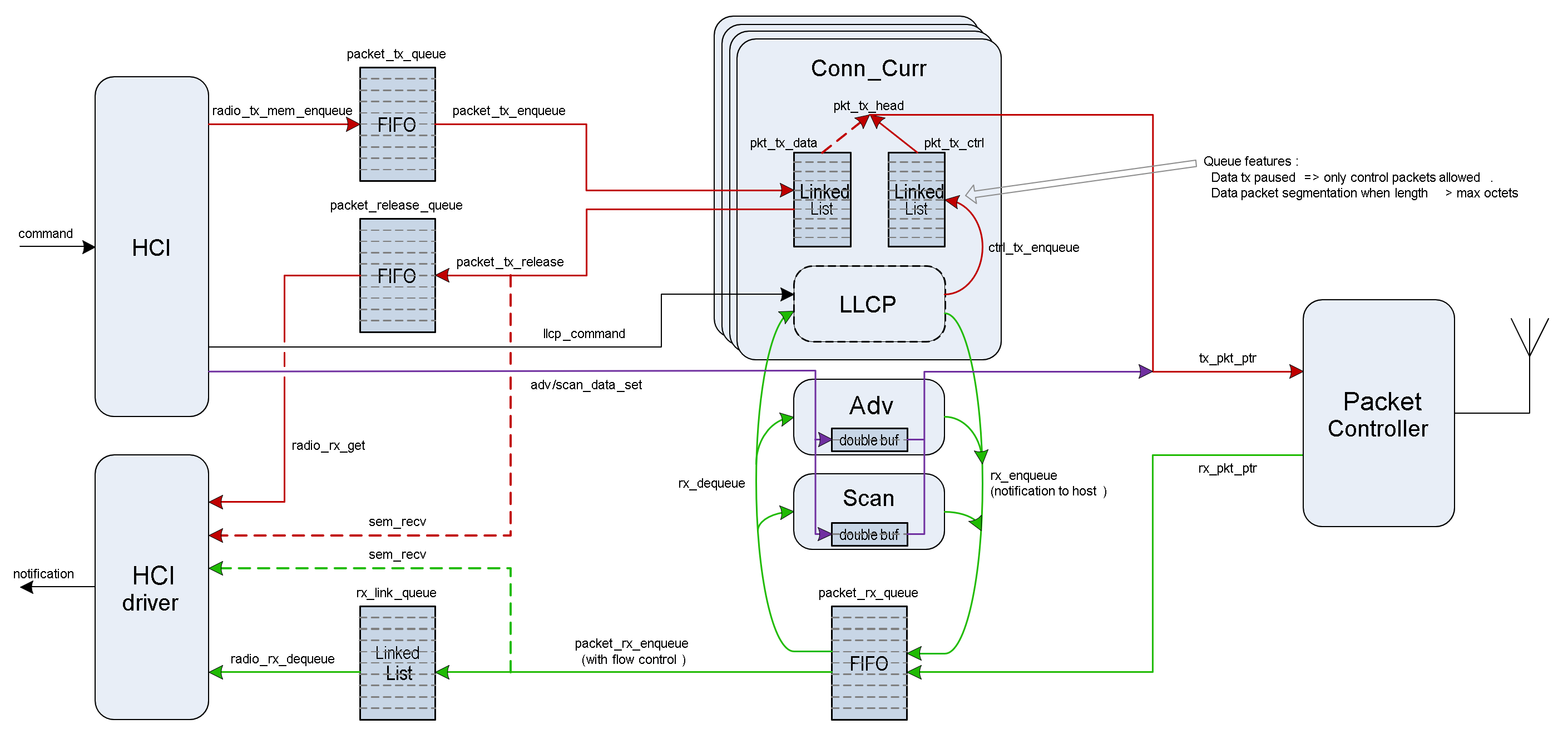

Legacy Controller

Legacy Bluetooth LE Controller — Legacy Controller architecture.

Vendor-specific hardware requirement

Nordic Semiconductor BLE Controller 구현이 요구하는 peripheral입니다.

Resource	nRF peripheral	Instance	Zephyr driver 접근	설명
Clock	`NRF_CLOCK`	1	Yes	Radio event 사이 저전력을 위한 LFCLOCK/sleep clock과 정확한 packet timing 및 event 내부 tIFS software switching을 위한 HFCLOCK/active clock.
RTC [a]	`NRF_RTC0`	1	No	Capture/compare register 2개 사용.
Timer	`NRF_TIMER0` 또는 `NRF_TIMER4` [1], `NRF_TIMER1` [0]	2 또는 1 [1]	No	Packet timing과 tIFS software switching에 각각 한 instance. 첫 timer는 capture/compare 7개(필수 3, ISR profiling 선택 1, single-timer tIFS 4), 두 번째 timer는 single tIFS timer를 쓰지 않을 때 4개.
PPI [b]	`NRF_PPI`	21 channel(20 [2])과 channel group 2개 [3]	Yes [4]	tIFS timing을 맞추는 radio mode switching과 PA/LNA control.
DPPI [c]	`NRF_DPPI`	20 channel과 channel group 2개 [3]	Yes [4]	tIFS timing을 맞추는 radio mode switching과 PA/LNA control.
SWI [d]	`NRF_SWI4`+`NRF_SWI5` 또는 `NRF_SWI2`+`NRF_SWI3` [5]	2	No	Lower Link Layer와 Upper Link Layer low-priority execution context용 2 instance.
Radio	`NRF_RADIO`	1	No	1 Mbps, 2 Mbps와 Coded PHY S2/S8 Long Range BLE를 포함한 multi-standard 2.4 GHz transceiver.
RNG [e]	`NRF_RNG`	1	Yes	Random Number Generator.
ECB [f]	`NRF_ECB`	1	No	AES Electronic Codebook Mode Encryption.
CBC-CCM [g]	`NRF_CCM`	1	No	CBC Message Authentication Code with Counter Mode encryption.
AAR [h]	`NRF_AAR`	1	No	Accelerated Address Resolver.
GPIO [i]	`NRF_GPIO`	PA와 LNA용 GPIO pin 각 1개	Yes	선택 debug GPIO pin 10개 추가 가능.
GPIOTE [j]	`NRF_GPIOTE`	1	Yes	PA/LNA에 사용.
TEMP [k]	`NRF_TEMP`	1	Yes	RC source LFCLOCK calibration.
UART [l]	`NRF_UART0`	1	Yes	Controller-only build의 HCI interface.
IPC [m]	`NRF_IPC` [5]	1	Yes	Controller-only build의 HCI interface.

약어와 조건

[a] Real Time Counter (RTC)
[b] Programmable Peripheral Interconnect (PPI)
[c] Distributed Programmable Peripheral Interconnect (DPPI)
[d] Software Interrupt (SWI)
[e] Random Number Generator (RNG)
[f] AES Electronic Codebook Mode Encryption (ECB)
[g] Cipher Block Chaining Message Authentication Code with Counter Mode encryption (CCM)
[h] Accelerated Address Resolver (AAR)
[i] General Purpose Input Output (GPIO)
[j] GPIO tasks and events (GPIOTE)
[k] Temperature sensor (TEMP)
[l] Universal Asynchronous Receiver Transmitter (UART)
[m] Interprocess Communication peripheral (IPC)

[0] CONFIG_BT_CTLR_TIFS_HW=n
[1] CONFIG_BT_CTLR_SW_SWITCH_SINGLE_TIMER=y
[2] Pre-defined PPI channel을 사용하지 않을 때
[3] Software-based tIFS switching용
[4] nRFx interface를 사용하는 driver
[5] nRF53x Series용
